Python Basics for CESM

2020-10-03·
Ka Ming FUNG
Ka Ming FUNG
· 5 min read

References:

For general python handling of nc files: https://github.com/geoschem/GEOSChem-python-tutorial
For NCL plot styles: http://www.pyngl.ucar.edu/
For merging nc files: https://medium.com/@neetinayak/combine-many-netcdf-files-into-a-single-file-with-python-469ba476fc14
For NCL color scales: https://github.com/hhuangwx/cmaps

This is an example to show how to combine multiple ncdf files, compute annual means, and make plots.

import numpy as np                    # for better array
import xarray as xr                   # the major tool to work with NetCDF data!

Merging monthly .nc files

Below is a list of files for this example. They are nc files named after case name, for each month in 2016.

Note that we could use, in the code, % (magic link) to call a function on the shell level.

%ls _data/*.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-01.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-02.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-03.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-04.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-05.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-06.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-07.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-08.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-09.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-10.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-11.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.h0.2016-12.nc
_data/FC2000climo.f19_f19.2_1_MOSAIC.OAS_KPP_ISO.cam.i.2017-01-01-00000.nc

We use the function xr.open_mfdataset from the xarray package. specifying the “names, combining method and dimension for concatenation. Note the use of * as a wildcard.

ds = xr.open_mfdataset(paths='_data/*.cam.h0.2016-*.nc', combine='by_coords', concat_dim="time")

# ds

Done! Couldn’t imagine life can be this easy :P

Computing global and annual-mean surface value of variables of interest

We want to extract the variables concerned using some string selection tracks, for instance “startswith” here.

vid = [x for x in ds.keys() if x.startswith('r_is')]
dr = ds[vid]

# dr

Then, we “slice” the surface layers out from the big dataset.

dr_surf = dr.sel(lev=slice(100, 1000))  # lev is in hPa. Here I assume troposphere is within 1000hPa-100hPa

# dr_surf

Do a quick check on the global mean values.

print(dr_surf.mean().compute().values)
<bound method Mapping.values of <xarray.Dataset>
Dimensions:                ()
Data variables:
    r_is_HOOCH2SCH2O       float32 11.503614
    r_is_HOOCH2SCO_1       float32 368.33008
    r_is_HOOCH2SCO_2       float32 0.021772318
    r_is_HOOCH2SO_NO2      float32 11.119194
    r_is_HOOCH2SO_O3       float32 368.70016
    r_is_HOOCH2S_NO2       float32 10.201074
    r_is_HOOCH2S_O3        float32 369.6315
    r_is_HPMTF_OH          float32 368.35184
    r_is_OOCH2SCH2OOH_HO2  float32 12.836186
    r_is_OOCH2SCH2OOH_NO   float32 11.503614
    r_is_shift_1           float32 1240.3165
    r_is_shift_2           float32 1215.9198>

Ok, they are about right.

Plotting variables on maps

To plot variables, we employ the powerful and (most) popular packages:

%matplotlib inline
from matplotlib import pyplot as plt  # for plotting

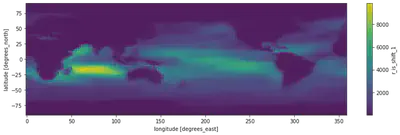

Here, we want to plot variable, r_is_shift_1, which is a 4-D array (lon, lat, lev, and time).

vid = "r_is_shift_1"                  # storing the variable id for easier recall

# dr_surf[vid]                          # just to double check if the array is what we want
# actual plotting codes:

fig = plt.figure(figsize=(14, 4))     # defining the canvas with size 14 x 4
ax = plt.axes()                       # defining the axes (Cartesian rectangle)

dr_surf[vid].mean(dim=['lev', 'time']).plot()  # two operations happened here, this line first compute the mean along lev and time dimensions of the array and then make the plot
<matplotlib.collections.QuadMesh at 0x2b0b7a6006d0>

png

Hurray, we got our nice plot. But who would stop here?

Time to play around the codes and make some aesthetic changes.

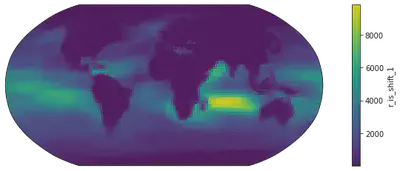

# Change 1: Projection - People have been arguing about which map projection is the best to maintain the "shape" of the Earth.
# One popular choice is the Robinson
# So this is how we do it.

from cartopy import crs as ccrs       # for map projections

fig = plt.figure(figsize=(14, 4))          # again, defining the canvas
ax = plt.axes(projection=ccrs.Robinson())  # defining the axes after Robinson projection

dr_surf[vid].mean(dim=['time', 'lev']).plot(transform=ccrs.PlateCarree())  # two operations here: computing the mean, and transforming the retangular grids onto a Robinson-projected coordinate system
<matplotlib.collections.QuadMesh at 0x2b0b7a4fd310>

png

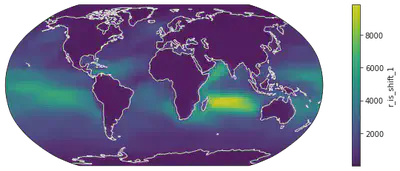

# Change 2: Coastline - Land-sea difference of some variables are not that obvisous so we also draw coastal lines for better readability

fig = plt.figure(figsize=(14, 4))
ax = plt.axes(projection=ccrs.Robinson())

dr_surf[vid].mean(dim=['time', 'lev']).plot(transform=ccrs.PlateCarree())

ax.coastlines(color="w") # this line adds coastlines to the coordinate system (aka axes in the language of matplotlib), and we used white
<cartopy.mpl.feature_artist.FeatureArtist at 0x2b0b7a6d4610>

png

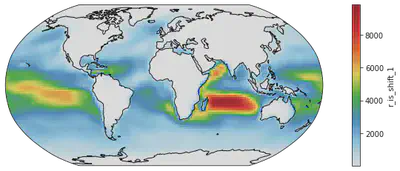

# Change 3: Color Scale - the default color scale of matplotlib is a color-blindness-friendly one but some community like to use their own color scales.
# For example, this popular White-Blue-Green-Yellow-Red scale:

from matplotlib import colors as c    # for making color schemes from Ngl applicable to matplot-style plots
import cmaps                          # packages for NCL color options

fig = plt.figure(figsize=(14, 4))
ax = plt.axes(projection=ccrs.Robinson())

dr_surf[vid].mean(dim=['time', 'lev']).plot(transform=ccrs.PlateCarree(),
                                            cmap = cmaps.WhiteBlueGreenYellowRed) # assigning the color scale

ax.coastlines() # now we use black coastal lines
<cartopy.mpl.feature_artist.FeatureArtist at 0x2b0b7cb88f10>

png

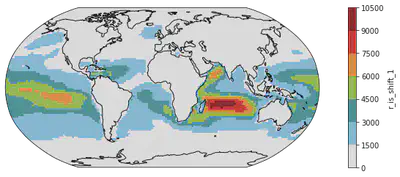

# Change 4: Color Steps or discretized color scale - Some scientists advocate for minimial color shades for better comparison.
# This is how we do that.

fig = plt.figure(figsize=(14, 4))
ax = plt.axes(projection=ccrs.Robinson())

dr_surf[vid].mean(dim=['time', 'lev']).plot(transform=ccrs.PlateCarree(),
                                            cmap = cmaps.WhiteBlueGreenYellowRed,
                                            levels = 10)

ax.coastlines()
<cartopy.mpl.feature_artist.FeatureArtist at 0x2b0b7cb45850>

png

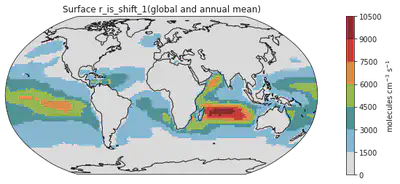

# Change 5: Titles and Labels - They are simply essential for all plots.

fig = plt.figure(figsize=(14, 4))
ax = plt.axes(projection=ccrs.Robinson())

ms = dr_surf[vid].mean(dim=['time', 'lev']).plot(transform=ccrs.PlateCarree(),
                                                 cmap = cmaps.WhiteBlueGreenYellowRed,
                                                 levels = 10,
                                                 add_colorbar = False) # Omitting the original colorbar.

# I haven't find how to change title using the build-in attribute of xarray so I recreate the color using the matplotlib function like this
colorbar_obj = plt.colorbar(ms)
colorbar_obj.set_label('molecules cm$^{-3}$ s$^{-1}$')  # adding the unit to the colorbar

ax.coastlines()
plt.title("Surface " + vid + "(global and annual mean)")  # adding a title to the plot
Text(0.5, 1.0, 'Surface r_is_shift_1(global and annual mean)')

png

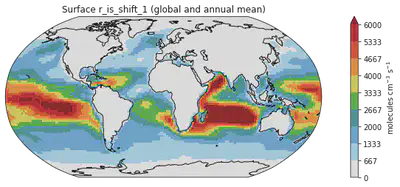

# Bonus Change: Showing smaller values only - sometimes some data are just too large that the color scale,
# we would want to put a maximum on the values to show, we set that cap at 6000

fig = plt.figure(figsize=(14, 4))
ax = plt.axes(projection=ccrs.Robinson())

ms = dr_surf[vid].mean(dim=['time', 'lev']).plot(transform=ccrs.PlateCarree(),
                                                 cmap = cmaps.WhiteBlueGreenYellowRed,
                                                 levels = 10,
                                                 add_colorbar = False,
                                                 vmax = 6000) # setting the variable using vmax and vmin

# I haven't found how to change title using the build-in attribute of xarray so I recreate the color using the matplotlib function like this
colorbar_obj = plt.colorbar(ms)
colorbar_obj.set_label('molecules cm$^{-3}$ s$^{-1}$')

ax.coastlines()
plt.title("Surface " + vid + " (global and annual mean)")
Text(0.5, 1.0, 'Surface r_is_shift_1 (global and annual mean)')

png

Saving the figure

Now we have done some simple post-processing. Let’s output the plot for publication!

fig = plt.figure(figsize=(14, 4))
ax = plt.axes(projection=ccrs.Robinson())

ms = dr_surf[vid].mean(dim=['time', 'lev']).plot(transform=ccrs.PlateCarree(),
                                                 cmap = cmaps.WhiteBlueGreenYellowRed,
                                                 levels = 10,
                                                 add_colorbar = False,
                                                 vmax = 6000)

colorbar_obj = plt.colorbar(ms)
colorbar_obj.set_label('molecules cm$^{-3}$ s$^{-1}$')

ax.coastlines()
plt.title("Surface " + vid + " (global and annual mean)")

plt.savefig("Figure1.png") # we can simply specify the wanted file type in the filename

png

And a png.file is created in under the same directory.

%ls *.png
